Herpes zoster isolated in the glossopharyngeal nerve: a case report and literature review

Matthew J. Barton1,2, Craig McCombe3, Michael Todorovic1,2, Mikaela L. Stiver4, Brent McMonagle1,5

1Menzies Health Institute Queensland, Griffith University, Gold Coast, QLD, Australia; 2School of Nursing and Midwifery, Griffith University, Nathan, QLD, Australia; 3Redlands General Practice, Redland City, QLD, Australia; 4Division of Anatomical Sciences, Department of Anatomy and Cell Biology, McGill University, Montreal, QC, Canada; 5Gold Coast University Hospital, Gold Coast, QLD, Australia

Correspondence to: Dr. Matthew J. Barton. Menzies Health Institute Queensland, Griffith University, Gold Coast, QLD, Australia. Email: m.barton@griffith.edu.au.

Abstract: Varicella zoster virus (VZV) can cause chickenpox (varicella zoster) and shingles (herpes zoster). Herpes zoster can affect cranial nerves but rarely impacts the glossopharyngeal nerve (GN) in isolation. We present a literature review examining primary research—published between 2012 and 2022—reporting herpes zoster affecting the GN, while also reporting a case of a 57-year-old male who presented to his primary health physician with a unilateral (right-sided) vesicular eruption of the soft palate with severe odynophagia and a generalised headache. Eight articles were included in the review, where patients’ ages ranged from 27–78 years and were equally male and female (four cases each). In all cases within the review, the herpes zoster manifested as a polyneuropathy impacting the GN among alongside other cranial nerves. In our case, the VZV was confirmed by polymerase chain reaction (PCR) assay obtained from the vesicular lesions. The patient was treated with oral Famiclovir 250 mg and analgesia for 5 days. One week later, the patient returned with excruciating pharyngitis. Physical examination showed an absent right-sided gag reflex, hypogeusia on the right posterior tongue, muffled hearing on the right side, and sharp pain over the right ear, scalp, and orbit. Magnetic resonance imaging (MRI) showed thickening and linear enhancement of the right GN, consistent with neuronitis. Here, we report a literature review of herpes zoster affecting the GN and a unique case of herpes zoster isolated to the right GN. Herpes zoster of the GN most often occurs in the context of a polyneuropathy, which we demonstrate in our review.

Keywords: Glossopharyngeal nerve (GN); herpes zoster; cranial nerve; varicella zoster; case report

Received: 24 August 2021; Accepted: 22 March 2022; Published: 12 April 2022.

doi: 10.21037/ajo-21-29

Introduction

Varicella zoster virus (VZV) is a member of the Herpesviridae family and the Alphaherpesvirinae sub-family, which also include herpes simplex virus (HSV) 1 and 2 (1). VZV invades the upper respiratory mucosa and reportedly spreads to the tonsils and lymphoid tissue. VZV is also known to travel to the cell bodies of neurons in the dorsal root ganglia of spinal nerves and cranial nerve ganglia where it may remain latent for years or decades (2). VZV reactivation can occur when the patient is stressed or immunocompromised, causing shingles (herpes zoster)—a localised, non-infectious, vesicular rash with associated pain of the affected cutaneous dermatome. The most common sites of VZV latency within cranial nerves include the ophthalmic division (V1) of the trigeminal nerve (herpes zoster ophthalmicus) and the facial nerve [herpes zoster oticus or Ramsay Hunt syndrome (RHS)] (3). It has been reported that the glossopharyngeal nerve (GN) can be affected by VZV reactivation but usually presents as part of a cranial polyneuropathy. A single-site analysis of 330 individuals who had VZV reactivation with cranial nerve involvement found that 0.9% of cases involved the GN but never in isolation (3).

Here, we present a rare case of herpes zoster isolated to the GN in accordance with the CARE reporting checklist (available at https://www.theajo.com/article/view/10.21037/ajo-21-29/rc). A review of the literature is also presented to summarise contemporaneous primary research surrounding herpes zoster impacting the GN.

Case presentation

A 57-year-old male presented to his primary care physician with severe right-sided odynophagia and worsening headache over three days. On examination, vesicles were present on the right soft palate, there was no neck stiffness nor photophobia to suggest meningitis, and no other neurological symptoms nor signs. A swab of the vesicular lesions was taken for polymerase chain reaction (PCR) assay of HSV and VZV. Pathology results confirmed VZV and were negative for HSV1 and HSV2. The patient was treated with oral Famciclovir 250 mg (three times daily; t.i.d.) for 5 days with analgesia, the management plan was determined after consultation with and an Ear, Nose and Throat (ENT) surgeon.

The patient returned 2 days later with excruciating pain in the region of the vesicular lesions causing insomnia and anorexia, and the patient noted an absence of taste on the right side of the posterior tongue. Management continued with Famciclovir (t.i.d.) and the addition of Oxycodone 5 mg (pro re nata; p.r.n.) for pain.

Three days later, the patient returned for review after completing 5 days of Famciclovir. On clinical examination, the vesicular lesions had resolved, but dysgeusia (loss of sweet taste and sensitivity to salty taste) was still present on the right posterior tongue. The patient reported reduced hearing and right otalgia, but examination of the ear was normal, with no vesicles present on the pinna, external auditory canal, or tympanic membrane. Generalised headache and right orbital pain were present, as well as hypoaesthesiae of the right scalp.

Magnetic resonance imaging (MRI) neurography of the brain and skull base was performed to examine the presence of neuronitis in the right GN, trigeminal nerve (orbital pain and scalp paraesthesia), and other cranial nerves (otalgia and muffled hearing), as seen clinically.

MRI neurography was performed with axial space sequences through the posterior fossa (Figure 1). This revealed thickening and enhancement of a short segment (preforaminal cisternal) of the right GN (Figure 1). Neither the trigeminal nerve nor the abducens, facial, and vestibulocochlear nerve complexes displayed abnormalities. There were no obvious denervation changes in the pharyngeal muscles or the soft palate, and there was a normal symmetrical enhancement of the geniculate ganglia.

Figure 1 MRI neurography images of skull base. (A) Axial cisternography sequence showing the right (white arrow) and left (black arrow) GN. Note the thickening of the right GN in its cisternal preforaminal segment. (B) Coronal T1 post gadolinium high resolution MRI sequence showing enhancement of the thickened right preforaminal and cisternal GN (white arrow) in keeping with a neuritis. MRI, magnetic resonance imaging; GN, glossopharyngeal nerves.

All procedures performed in this study were in accordance with the Declaration of Helsinki (as revised in 2013). Written informed consent was obtained from the patient for publication of this case report and accompanying images. A copy of the written consent is available for review by the editorial office of this journal.

Literature review

Methods

A comprehensive search was done on Medline, Embase, and PubMed databases. Search and MeSH terms for VZV infection, herpes zoster, and GN were identified through preliminary searches and combined with the Boolean terms as follows: (“varicella zoster virus” OR “Shingles” OR “Herpes zoster”) AND (“glossopharyngeal nerve” OR “ninth cranial nerve”). The search was run on years of coverage from 2012 to the present, and other search filters include human studies, English text only, full text, peer-reviewed articles and primary research articles.

Results

Electronic searching identified 32 citations in Medline Ovid, PubMed and Embase from 2012 to 2022, of which 14 duplicate papers were removed. The remaining papers were reviewed for relevance to the topic by title and abstract with 13 articles meeting the criteria. Full texts with primary research in the English language were subsequently sourced for all articles with a further 5 texts excluded. A summary is included using the PRISMA (Preferred Reporting Items for Systematic Reviews and Meta-Analyses) flowchart (Figure 2).

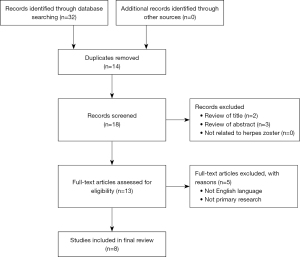

Figure 2 PRISMA flowchart. PRISMA, Preferred Reporting Items for Systematic Reviews and Meta-Analyses.

Eight case studies articles were included, published between 2012 and 2022, comprising a total of eight patients. Two articles were published in China and Japan, and one article from Australia, Korea, France and Portugal. Patients’ ages ranged from 27 to 78 years of age, with the mean age 59 years and equally affecting males and females (four of each).

Table 1 summarises the affected nerves in addition to the GN. The vagus nerve was the most affected nerve which was seen in 88% of the cases, other cranial nerves affected were facial (50%), vestibulocochlear (38%), trigeminal (25%), abducens (13%) and accessory (13%). Further patients’ characteristics are summarized in Table 1. All patients presented with lateralized symptoms. Interestingly, almost two-thirds of the patients complained of otalgia and hoarseness. While half of the patients suffered from facial muscle weakness/palsy, vocal cord palsy, dysphagia and vesicular rashes. Other frequently reported symptoms included reduced gag reflex (38%), nystagmus (25%) and autonomic system dysfunction (13% blood pressure, vomiting, hiccups). One-quarter of the patients made a full recovery. In 63% of the patients, dysphagia and swallowing dysfunction persisted, which required ongoing feeding assistance, while at least 25% of patients still retained some form of vocal cord dysfunction.

Table 1

Case reports of patients with confirmed herpes zoster affecting the GN

Reference Country Patient age/sex Nerves affected Symptoms Outcomes
Liao et al. 2021 (4) China 78/Male Trigeminal, facial, glossopharyngeal & vestibulocochlear nerves. Three-month history of worsening otalgia. Physical examination found submandibular and temporal region numbness, and the right side of the tongue root and right-sided facial weakness. Hot flashes on right face and ear Improved the quality of life, resulting in considerable pain relief (decreased from 9 to 0)
Inagaki et al. 2021 (5) Japan 27/Female Glossopharyngeal & vagus nerves Presented with dysphagia and hoarseness. Physical examination found left palatal palsy and arytenoid fixation. Burning, stinging pain in the left side of the throat radiating to the left middle/upper neck One-year after onset, all symptoms resolved, left arytenoid regained some movement
Kim et al. 2018 (6) Korea 67/Male Trigeminal, facial, vestibulocochlear, glossopharyngeal and vagus nerves Presented with a 7-day history of right-sided otalgia, vesicular eruptions and pustules in the right auricle and external auditory canal. Physical examination found, dysphagia, hoarseness, mild dyspnoea, and right-sided facial muscle weakness. Gag reflex on the right side was absent and the uvular deviation to the left Thirteen months after onset, continued rehabilitation therapy for dysphagia in hospital. Aspiration scale improved (7 to 2), PEG tube was removed and oral feeding started
Cao et al. 2019 (7) China 66/Male Facial, glossopharyngeal and vagus nerves Presented with a 3-day history of hoarseness and dysphagia. Physical examination found a slow gag reflex. Seven days after admission, the corner of the patient’s mouth was skewed towards the right, with left otalgia accompanied by dizziness. Left peripheral facioplegia, and horizontal nystagmus Hospitalization for 24 days. Nasogastric tube was removed before discharge and the patient was able to consume an oral liquid diet
Schnall et al. 2020 (8) Australia 68/Male Abducens, facial, vestibulocochlear, glossopharyngeal and vagus nerves Presented with 24-hour history of right-sided facial paralysis. Physical examination found horizontal diplopia and progressive right-sided facial swelling with otalgia. Absent gag reflex, asymmetric palatal movement and right vocal cord paralysis. Small, painful papules within the external auditory canal After 4 months, negligible neurological recovery. The patient underwent a right tarsorrhaphy due to poor eyelid closure, and a thyroplasty for vocal cord paralysis. Poor swallowing required the placement of a percutaneous endoscopic jejunostomy feeding tube
Shibata et al. 2019 (9) Japan 58/Female Glossopharyngeal and vagus (recurrent laryngeal) nerves Presented with a 2-day history of hoarseness. Physical examination found hemi-laryngeal paresis and pharyngeal curtain sign. Facial paralysis, hearing loss or dysgeusia, vesicles/erythema on the left auricle The dysphagia and pharyngeal curtain sign gradually improved and were largely healed after 180 days. Hemi-laryngeal paresis and the hoarseness did not disappear completely
Alciato et al. 2019 (10) France 28/Female Glossopharyngeal & vagus nerves Presented with intense acute odynophagia associated with intractable hiccoughs and repeated vomiting. Physical examination found unstable blood pressure, tachycardia and an oedematous vesicular rash covered by a whitish coating, affecting all of the right side of the oral cavity, oropharynx and larynx The mucosal lesions resolved within 5 days and pain resolved after 7 days but hiccoughs persisted for ~1 month
Ferreira et al. 2018 (11) Portugal 76/Female Glossopharyngeal, vagus and accessory nerves Presented with 1-week of dysphonia, dysphagia, and mild right temporal-parietal headache with radiation to the ear and impaired right arm abduction and shoulder elevation. Physical examination found dysphonia, asymmetrical elevation of the soft palate with a left deviation, paresis in the right trapezius muscle, and several vesicular skin lesions in the right ear’s concha. Direct laryngoscopy showed a right vocal cord palsy Clinical improvement occurred after a few days and the patient was discharged without any skin lesions, dysphagia, dysphonia, or weakness in the right upper limb

GN, glossopharyngeal nerve; PEG, percutaneous endoscopic gastrostomy.

Discussion

Herpes zoster is a common clinical entity caused by the reactivation of the latent VZV in the dorsal root ganglia or cranial nerve ganglia that may affect sensory, motor, autonomic, and special sensory fibres. Commonly affected nerves are the trigeminal and facial nerves (RHS), while the involvement of the other cranial nerves is infrequent (3). There have been some reported cases of polyneuropathies affecting the GN; for example, a study of 330 individuals with cranial nerve VZV involvement by Tsau et al. (3) in 2020 found that 0.9% of cases impacted the GN, while Ragozzino et al. (12) in 1982 found that 0.2% of 590 VZV cranial nerve cases affected the GN. Our literature review demonstrated that all patients with herpes zoster involving the GN had polyneuropathies with the vagus (88%) and facial nerves (50%) being additionally affected. However, VZV impacting the GN in isolation—although cases have been reported—is extremely rare (Tamakawa, 1999; Nakagawa, 2006) (13,14).

In this study, a 57-year-old male developed symptoms and signs consistent with VZV reactivation, affecting the GN, confirmed by PCR assay. The clinical manifestations of GN neuritis are related to the nature and diversity of fibres conveyed. There are five fibre types of the GN (Figure 3): somatic efferent (stylopharyngeus muscle), general somatic afferent (nasopharynx and oropharynx, and small branch to middle ear), special sensory afferent (taste; posterior third of tongue), general visceral afferent (carotid sinus and carotid body) and parasympathetic (parotid salivary secretion via the otic ganglion).

Figure 3 Illustration of GN anatomy. The GN carries five types of fibres: general somatic afferent (yellow), special somatic afferent (green), parasympathetic (dark blue), general somatic efferent (pink), and general visceral afferent (light blue). The asterisk (*) represents the general somatic afferent branch innervating various aspects of the nasopharynx and oropharynx. GN, glossopharyngeal nerve.

Prodromal symptoms—preceding the vesicular rash—included hyperalgesia along the GN’s dermatome and a generalised headache. The patient’s odynophagia corresponds with the pattern of vesicular eruption of the soft palate, where the GN mediates the somatic sensation of the tonsils, tongue base (posterior third of the tongue and the vallecula), and nasopharynx (Figure 3). The GN affords the somatic afferent portion of the gag reflex, thus explaining the patient’s unilateral (right-sided) absence of a gag reflex. These findings were further supported by T1- and T2-weighted MRI sequences that demonstrated no denervation changes of the pharyngeal muscles or the soft palate, suggesting that the efferent limb (vagus nerve) of the gag reflex was intact.

The hypo/dysgeusia experienced on the right posterior tongue reflects the GN’s special sensory innervation of taste buds on the posterior third of the tongue. There was no functional indication of hyposalivation—a presentation that could result when the GN’s parasympathetic fibres to the parotid gland (Figure 3) are disturbed; however, it is possible that any reduced ipsilateral (right-sided) parotid salivation may have gone unnoticed due to compensatory secretion by the other salivary glands. Moreover, radiological assessment of the parotid gland for denervation or atrophy appears inconclusive when assessing lesions affecting the GN pathway (15).

Hearing loss due to herpes zoster frequently manifests in patients with RHS, which is assumed to be typical symptoms of facial and vestibulocochlear nerve dysfunction caused by reactivation of VZV in the geniculate ganglia (16). Although the patient in this case study reported muffled hearing, there was no MRI evidence of perturbations to these structures. There was no obvious cause for this, and unfortunately, no audiology testing was performed at the time or later, otherwise this may have shown hearing loss or abnormal tympanometry. Perhaps the stylopharyngeus muscle became dysfunctional, leading to eustachian tube dysfunction, which may then have caused the mild hearing loss (muffled hearing).

The auriculotemporal branch of the trigeminal nerve, the great auricular nerve of the cervical plexus, the auricular branch of the vagus nerve (Arnold’s nerve) and the tympanic nerve (Jacobson’s nerve) of the GN, all distribute to the skin of the auricle, the external acoustic meatus and tympanic membrane (17). Because of the diverse nature of the ear’s sensory innervation, a wide variety of disorders can produce referred otalgia. Pharyngeal inflammatory disease can cause referred otalgia via the GN, which would appear consistent in this case (18). A pathological process involving the pharyngeal region can refer pain to the ear via these tympanic branches. Moreover, pain from the ear can radiate often to the vertex and to the temple but may sometimes spread towards other areas of the head, which could explain the patient’s facial pain in the V1 territory.

Conclusions

In summary, we have reported a unique case of herpes zoster isolated to the right GN. VZV infection of the GN most often occurs in the context of a polyneuropathy, which our literature review demonstrates. VZV was confirmed by PCR assay from a swab of the vesicles on the patient’s right soft palate. MRI findings were also suggestive of right GN neuronitis. The main clinical symptoms were unilateral odynophagia, hypo/dysgeusia, absent gag reflex, and otalgia. The patient was treated with oral Famciclovir and analgesia and made a full recovery.

Acknowledgments

The authors would like to thank Dr. Mitesh Gandhi, radiologist who assisted in the acquisition of the MRI image and providing his oversight in the radiology section.

Funding: None.

Footnote

Reporting Checklist: The authors have completed the CARE reporting checklist. Available at https://www.theajo.com/article/view/10.21037/ajo-21-29/rc

Peer Review File: Available at https://www.theajo.com/article/view/10.21037/ajo-21-29/prf

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at https://www.theajo.com/article/view/10.21037/ajo-21-29/coif). The authors have no conflicts of interests to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. All procedures performed in this study were in accordance with the Declaration of Helsinki (as revised in 2013). Written informed consent was obtained from the patient for publication of this case report and accompanying images. A copy of the written consent is available for review by the editorial office of this journal.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.
