RNF8 is associated with radioresistance, nodal stage and extranodal spread in oral cavity squamous-cell carcinoma

Introduction

Oral cavity cancer is the tenth most common cancer in the developed world (1), and treatment outcomes have shown limited improvement in survival compared to other head and neck cancers (2,3). Contributing to poor survival is the relatively advanced stage at diagnosis (4) and limitations of imaging in pre-surgical staging (5), leading to more aggressive surgical and adjuvant management. Elective neck dissection in clinically node-negative pT1 and pT2 oral cavity cancer demonstrates occult metastatic disease in 13–33% (pT1) and 37–50% (pT2) of cases (6). There is significant morbidity associated with neck dissection and adjuvant radiotherapy, highlighting a need for predictive markers to improve patient selection.

Underpinning cancer development and metastasis is genomic instability, which is a function of outside stresses and the cellular DNA damage response cascade. Double-strand DNA breaks are the most deleterious genomic lesion and are repaired by two competing repair pathways; homologous recombination (HR) and non-homologous end joining (NHEJ). RNF8 is a ubiquitin-E3 ligase (7) that acts in a number of roles in the DNA damage response and repair system (8,9), is preferentially expressed following IR exposure (10), and is a rate-limiting component among the ubiquitin-E3 ligase analogues (11). RNF8-mediated ubiquitin-chain polymerisation of histones H2A and H2Ax promote initiation of the both HR and NHEJ upstream mediators (9), however there is also evidence it can prevent interference between the two pathways (12). In vitro knockdown of RNF8 induces PARP1-inhibitor sensitivity, chemosensitivity and radiosensitivity (12,13). In this study, our aim is to investigate the role of RNF8 protein expression in overall survival and association with established adverse clinical markers.

Methods

Study population

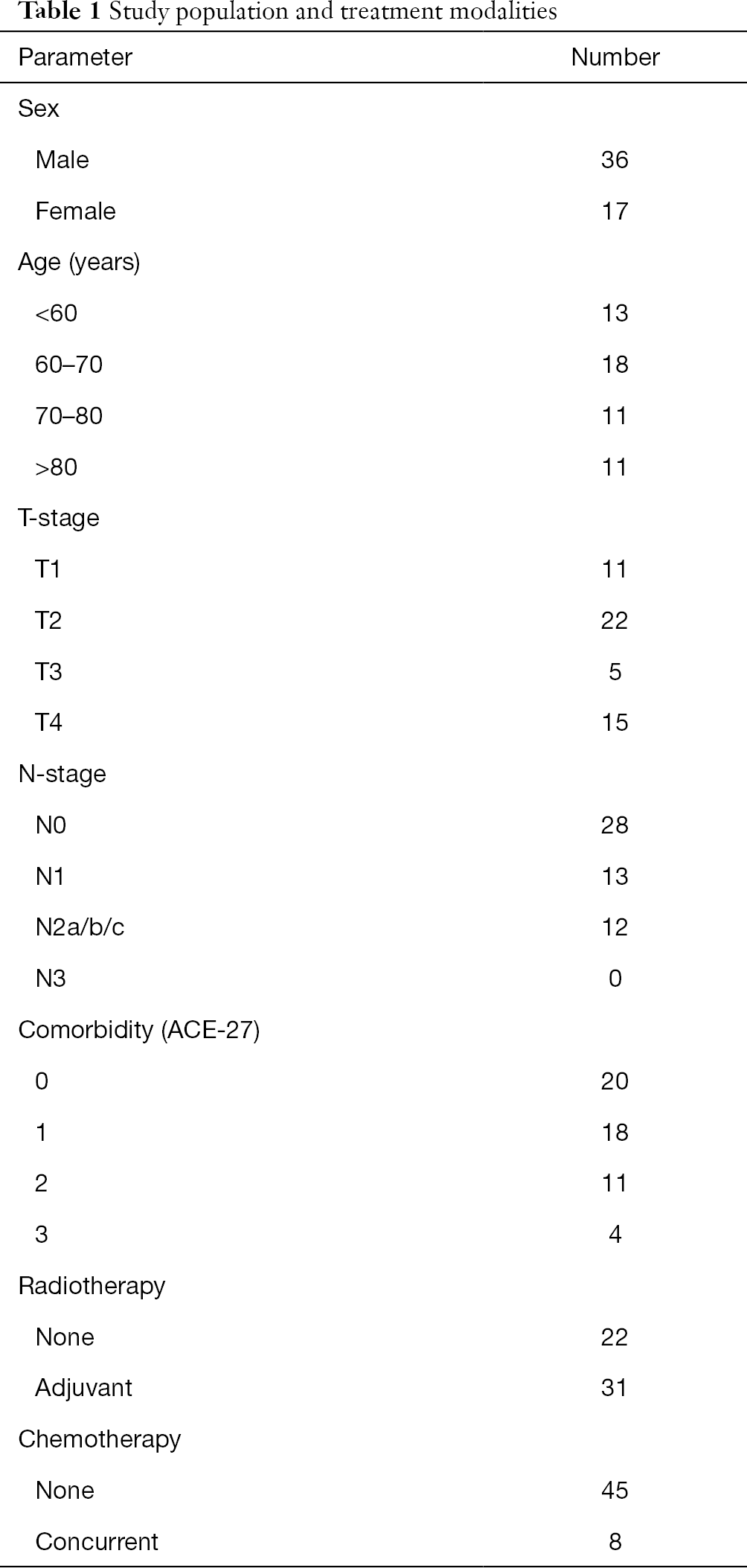

Patients were selected retrospectively from a single-site tertiary referral centre (Princess Alexandra Hospital) (Table 1). Patients were selected on primary tumour site (oral cavity), adequate stored tissue, and complete clinical data. Patients were excluded for insufficient stored tumour and inappropriate or uncertain primary site, and for treatment with palliative intent. All patients underwent primary excision, with neck dissection and adjuvant radiotherapy as appropriate for the disease stage. Two [2] patients were excluded for refusing radiotherapy where it was recommended. No patients were unable to complete adjuvant radiotherapy when commenced. Where available, all delivered radiotherapy regimens were of 60 or 66 Gy with no altered fractionation.

Procedure

Ethics and governance approval was obtained from Metro South Governance at the Princess Alexandra Hospital (HREC/13/QPAH/2). From the Fifty-five [55] formalin-fixed paraffin-embedded tumours were sampled and assembled in a tissue microarray with a Beecher MTA-1 Manual Arrayer. Antigen retrieval was effected by autoclave at 105 degrees celcius in EDTA buffer for 15 minutes, blocked with TBS. Sections were incubated for 1 hour with primary antibody (Sigma HPA050731) 1:100 dilution at room temperature. Sections were counterstained with haematoxylin and assessed by the study pathologist. A four-point grading scale (No uptake, mild uptake, moderate uptake, significant uptake) was constructed using reference normal oral mucosa as a control. Tumours were scored according to percentage expression and intensity. Clinical data was obtained from chart review and pathological database search. Comorbidity was graded with the ACE-27 scoring tool (14). Data analysis is performed with the assistance of IBM SPSS (ver 21) statistical analysis software. Kaplan-Meier survival graphs are constructed for each, and statistical significance is tested using the Mantel-Cox log rank. Interactions between biomarkers and clinical cofactors were manually tested using Pearson’s R-test or Spearman correlation.

Results

Staining intensity showed reasonable variability with the RNF8 antibody, with 16 of 53 valid tumours (30.2%) graded ‘positive’ on stain intensity. Localisation in positive samples was homogenous, with a granular nuclear stain uptake.

While overall survival was not significantly affected in RNF8-positive disease in this study, stratification by received radiotherapy treatment showed an inverse survival relationship (Figures 1,2). One patient in this analysis was censored, as they did not receive radiotherapy however still had residual disease.

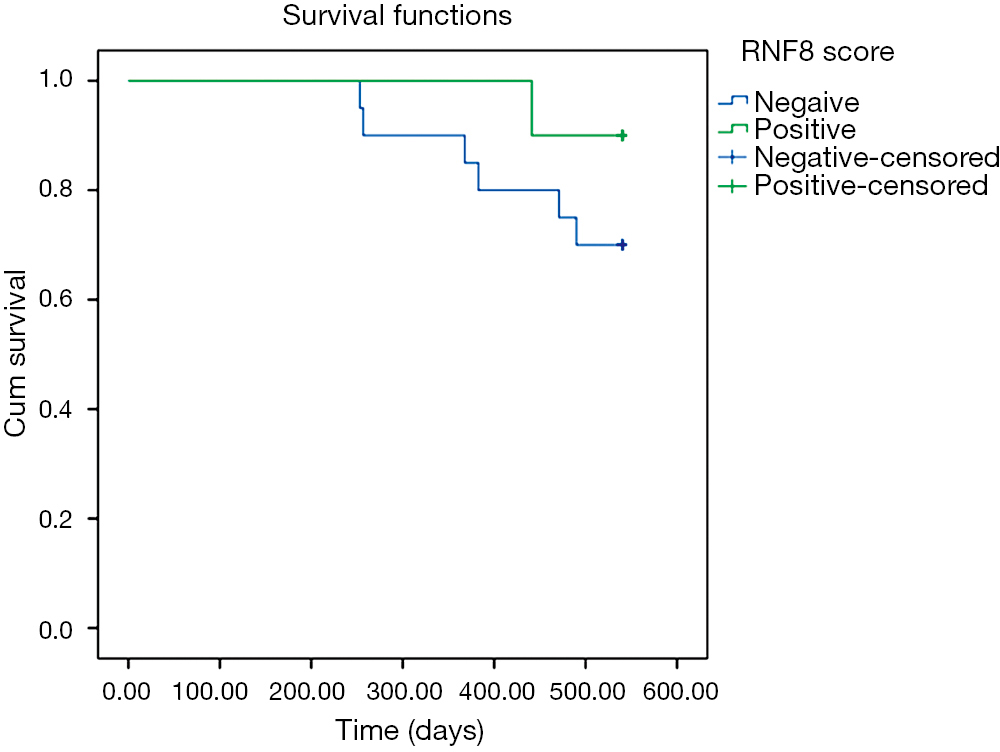

Figure 1 Subgroup survival graph for RNF8 score in patients who received radiotherapy (Mantel-Cox log rank =0.230).

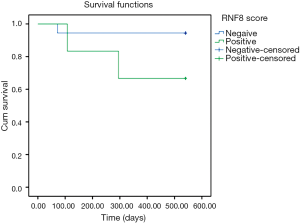

Figure 2 Subgroup survival graph for RNF8 score in patients who did not receive radiotherapy (Mantel-Cox log rank =0.091).

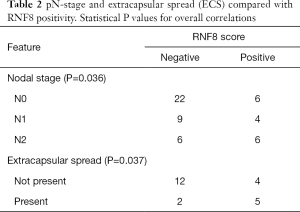

Strong association was found between RNF8 positivity and N-stage (P=0.036) (Table 2), extracapsular spread (ECS) (P=0.037) and tumour thickness (P=0.021) (Figure 3).

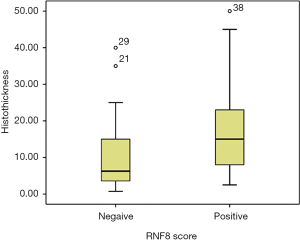

Figure 3 Histogram demonstrating association between RNF8 intensity and tumour thickness (P=0.021).

Discussion

The present study demonstrates an association between RNF8 expression and tumour thickness, nodal status and nodal ECS. Prediction of overall survival is linked to radiotherapy treatment, with RNF8-positive disease demonstrating increased radiosensitivity. Interestingly, positivity was also associated with the presence of adverse features. In particular, strong association was found with nodal ECS, one of the most sensitive predictors for aggressive disease (15,16). While these findings appear to be in contrast to in vitro cell knockdown studies which demonstrate increased IR and chemosensitivity in RNF8-deficient disease (12,13), staining was not calibrated to indicate deficiency. RNF8 is a rate-limiting component of the E3-ubiquitin ligase system that aids coordination of NHEJ and HR DNA repair (11). RNF8 also generates Lys48-linked ubiquitin chains which are associated with histone degradation (17). High in vivo tumour expression of RNF8 may represent higher levels of underlying genomic instability, and propensity to develop the associated adverse features of ECS and nodal spread.

Overall survival data suggests an association with radiosensitivity, however interpretation of the predictive effect of RNF8 expression on the effectiveness of radiotherapy in the present retrospective study is not possible due to the inability to exclude patients who were offered radiotherapy but declined, or were decided to be unfit for radiotherapy. One such patient was identified and excluded, however as chart documentation was not standardised this could not be properly assessed. As a subgroup analysis, neither survival graph reaches prognostic significance in isolation. Given the strong role of RNF8 in both radioresistance mechanisms and dsDNA repair pathways, this is a promising link for larger trials to investigate.

We have demonstrated a strong association between RNF8 expression and several critical clinical markers for disease prognosis; tumour thickness, ECS and histological N-stage, which are only available following surgical excision. Importantly, as RNF8 expression may be assessed on a pre-operative biopsy specimen, its association with ECS and nodal spread may allow these features to be predicted pre-operatively. This early identification of adverse pathological staging has application in early chemotherapy & radiotherapy planning, patient treatment discussion and multidisciplinary team decision-making.

Further prospective studies are required to elucidate the effectiveness and predictive power of RNF8 as a treatment biomarker. The association between high intrinsic RNF8 expression and aggressive tumour features suggests underlying genomic instability, and in the context of previous work demonstrating chemoradiosensitivity in RNF8-deficient cells offers an attractive adjuvant drug target.

Acknowledgments

Funding: None.

Footnote

Conflicts of Interest: All authors have completed the ICMJE uniform disclosure form (available at http://dx.doi.org/10.21037/ajo.2019.05.04). The authors have no conflicts of interest to declare.

Ethical Statement: The authors are accountable for all aspects of the work in ensuring that questions related to the accuracy or integrity of any part of the work are appropriately investigated and resolved. The study was conducted in accordance with the Declaration of Helsinki (as revised in 2013). Ethics and governance approval was obtained from Metro South Governance at the Princess Alexandra Hospital (HREC/13/QPAH/2). Informed consent was waived due to the retrospective nature of the study.

Open Access Statement: This is an Open Access article distributed in accordance with the Creative Commons Attribution-NonCommercial-NoDerivs 4.0 International License (CC BY-NC-ND 4.0), which permits the non-commercial replication and distribution of the article with the strict proviso that no changes or edits are made and the original work is properly cited (including links to both the formal publication through the relevant DOI and the license). See: https://creativecommons.org/licenses/by-nc-nd/4.0/.

References

1. Ferlay J, Soerjomataram I, Dikshit R, et al. GLOBOCAN Cancer Incidence and Mortality. 2008. Available online: http://globocan.iarc.fr
2. Schantz SP, Yu GP. Head and neck cancer incidence trends in young Americans, 1973-1997, with a special analysis for tongue cancer. Arch Otolaryngol Head Neck Surg 2002;128:268-74. [Crossref] [PubMed]
3. Horner M, Ries LAG, Krapcho M, et al. SEER Cancer Statistics Review, 1975-2006, National Cancer Institute. Bethesda, MD. 2009.
4. Neville BW, Day TA. Oral Cancer and Precancerous Lesions. CA Cancer J Clin 2002;52:195-215. [Crossref] [PubMed]
5. Stuckensen T, Kovacs AF, Adams S, et al. Staging of the neck in patients with oral cavity squamous cell carcinomas: a prospective comparison of PET, ultrasound, CT and MRI. J Craniomaxillofac Surg 2000;28:319-24. [Crossref] [PubMed]
6. Fasunla AJ, Greene BH, Timmesfeld N, et al. A meta-analysis of the randomized controlled trials on elective neck dissection versus therapeutic neck dissection in oral cavity cancers with clinically node-negative neck. Oral Oncol 2011;47:320-4. [Crossref] [PubMed]
7. Ito K, Adachi S, Iwakami R, et al. N-Terminally extended human ubiquitin-conjugating enzymes (E2s) mediate the ubiquitination of RING-finger proteins, ARA54 and RNF8. Eur J Biochem 2001;268:2725-32. [Crossref] [PubMed]
8. Marteijn JA, Bekker-Jensen S, Mailand N, et al. Nucleotide excision repair-induced H2A ubiquitination is dependent on MDC1 and RNF8 and reveals a universal DNA damage response. J Cell Biol 2009;186:835-47. [Crossref] [PubMed]
9. Mailand N, Bekker-Jensen S, Faustrup H, et al. RNF8 Ubiquitylates Histones at DNA Double-Strand Breaks and Promotes Assembly of Repair Proteins. Cell 2007;131:887-900. [Crossref] [PubMed]
10. Sakasai R, Tibbetts R. RNF8-dependent and RNF8-independent Regulation of 53BP1 in Response to DNA Damage. J Biol Chem 2008;283:13549-55. [Crossref] [PubMed]
11. Mok MT, Cheng AS, Henderson BR. The ubiquitin ligases RNF8 and RNF168 display rapid but distinct dynamics at DNA repair foci in living cells. Int J Biochem Cell Biol 2014;57:27-34. [Crossref] [PubMed]
12. Kobayashi S, Kasaishi Y, Nakada S, et al. Rad18 and Rnf8 facilitate homologous recombination by two distinct mechanisms, promoting Rad51 focus formation and suppressing the toxic effect of nonhomologous end joining. Oncogene 2015;34:4403-11. [Crossref] [PubMed]
13. Huen MS, Grant R, Manke I, et al. RNF8 Transduces the DNA-Damage Signal via Histone Ubiquitylation and Checkpoint Protein Assembly. Cell 2007;131:901-14. [Crossref] [PubMed]
14. Bang D, Grant R, Manke I, et al. The Adult Comorbidity Evaluation-27 (ACE-27) test: a new comorbidity index for patients with cancer. In Annual Meeting of the American Society of Clinical Oncology. 2000. Available online: https://www.medicalalgorithms.com/comorbidity-scores-cancer
15. Shaw RJ, Lowe D, Woolgar JA, et al. Extracapsular spread in oral squamous cell carcinoma. Head Neck 2010;32:714-22. [PubMed]
16. Woolgar JA, Rogers SN, Lowe D, et al. Cervical lymph node metastasis in oral cancer: the importance of even microscopic extracapsular spread. Oral Oncol 2003;39:130-7. [Crossref] [PubMed]
17. Feng L, Chen J. The E3 ligase RNF8 regulates KU80 removal and NHEJ repair. Nat Struct Mol Biol 2012;19:201-6. [Crossref] [PubMed]
